Used to display images. It supports properties such as src, alt, width, height, and responsive sources for different screen sizes.

Usage

Basic Example

import type { NubeSDK } from "@tiendanube/nube-sdk-types";
import { Image, Box } from "@tiendanube/nube-sdk-jsx";

function MyComponent() {
  return (
    <Box direction="col" gap={16}>
      {/* Basic image */}
      <Image
        src="https://app-insti-cdn.nuvemshop.com.br/site/dist/images/widgets/closing-cta/image-3.webp"
        alt="Nuvemshop Logo"
      />
    </Box>
  );
}

export function App(nube: NubeSDK) {
  nube.send("ui:slot:set", () => ({
    ui: {
      slots: {
        after_line_items: <MyComponent />,
      },
    },
  }));
}

Responsive Images with Multiple Sources

The Image component supports multiple sources with media queries, allowing you to serve different images based on screen size. This is particularly useful for banners and responsive layouts where you want to optimize the image for different devices.

When you provide the sources prop, the component renders a <picture> element with multiple <source> tags, enabling the browser to select the most appropriate image based on the viewport width.

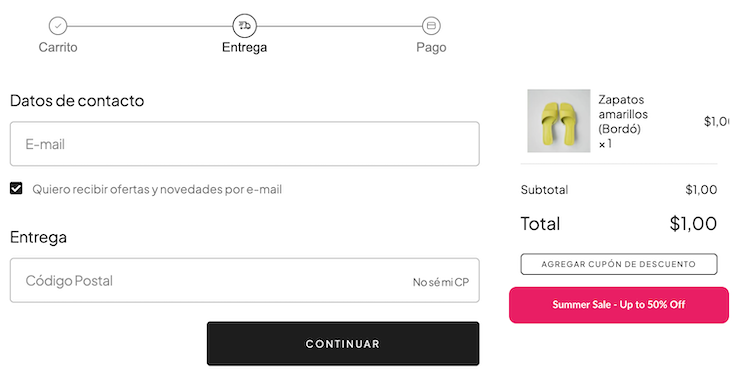

Desktop

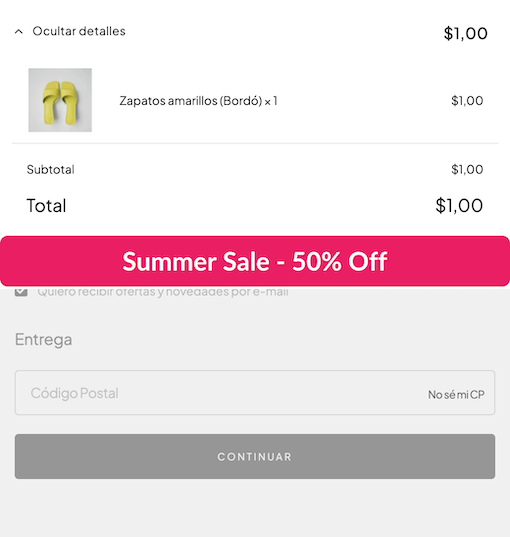

Tablet

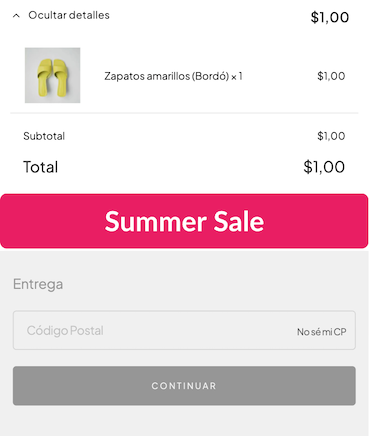

Mobile

Responsive Banner Example

import type { NubeSDK } from "@tiendanube/nube-sdk-types";
import { Image, Box } from "@tiendanube/nube-sdk-jsx";

function ResponsiveBanner() {
  return (
    <Box direction="col" gap={16}>
      <Image
        src="https://placehold.co/400x60/e91e63/white?text=Summer+Sale"
        alt="Promotional banner"
        sources={[
          {
            src: "https://placehold.co/1200x200/e91e63/white?text=Summer+Sale+-+Up+to+50%25+Off",
            media: "(min-width: 768px)",
          },
          {
            src: "https://placehold.co/800x150/e91e63/white?text=Summer+Sale+-+50%25+Off",
            media: "(min-width: 480px)",
          },
        ]}
        style={{ width: "100%", borderRadius: "8px" }}
      />
    </Box>
  );
}

export function App(nube: NubeSDK) {
  nube.send("ui:slot:set", () => ({
    ui: {
      slots: {
        after_line_items: <ResponsiveBanner />,
      },
    },
  }));
}

info

The browser evaluates the media queries in the sources array from top to bottom and uses the first matching source. The src prop serves as the fallback image when no media query matches or for browsers that don't support the picture element.

Properties

Property	Type	Required	Description
src	string	Yes	URL of the image to display. Must use "https://".
alt	string	Yes	Alternative text for the image, used for accessibility.
sources	ImageSource[]	No	Array of alternative image sources with optional media queries.
width	Size	No	Width of the image (e.g., "100px", "50%", "auto", 100).
height	Size	No	Height of the image (same format as width).
id	string	No	Optional unique identifier for the component.
style	StyleSheet	No	Custom styles for the image.

ImageSource

Property	Type	Required	Description
src	string	Yes	The alternative image source URL (https only).
media	string	No	Optional media query to match this source.
